Yolc

Embedded DSL (EDSL) in Haskell

Haskell makes Yolc expressive.

What Is Deep Embedding

Haskell is a great host language for writing Domain Specific Languages (DSLs), and Yolc provides a deep-embedded DSL in Haskell called "YulDSL/Haskell."

Programming in Yolc is programming in Haskell:

foo :: PureFn (U256 -> U256 -> U256 -> U256)
foo = $fn \a b c -> a + b * c

The above is a valid Haskell code, and Yolc's Yul code generator can interpret[^1] and generate the following valid Solidity/Yul code:

function u$$pfn_Basic_Tests_59_15(v_a, v_b, v_c) -> v_d {
 v_d := __checked_add_t_uint256(v_a, __checked_mul_t_uint256(v_b, v_c))
 leave
}

The difference between shallow and deep embedding lies in that deep embedding can reinterpret the original programs into different forms. In our case, a different interpreter can also translate the same program into a GraphViz diagram.

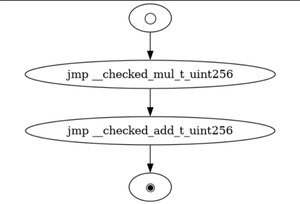

GraphViz preview of foo

💡 Read here to learn more about the inner category-theoretical working of the "YulDSL."

Interoperability

Yolc will be able to interact with Solidity code, and Yolc will generate Solidity code helpers for Solidity code to interact with Yolc generated code.

Contract ABI Compatible

First of all, Yolc will be fully-compatible with Contract ABI. You can interact with contracts written by Solidity, and vice versa.

⚠️ Some parts of the support is still work-in-progress.

Storage Layout

To access contract storage, a similar layout mechanism to Solidity's "map" is provided. The following are code for static functions to balances and allowances in a ERC20 example contract.

-- | Storage map of account balances
balances :: SMap (ADDR -> U256)
balances = makeSMap "Yolc.Demo.ERC20.Storage.AccountBalances"

-- | ERC20 balance of the account.
balanceOf :: StaticFn (ADDR -> U256)
balanceOf = $lfn $ ylvm'pv \owner -> sgetM $ balances #-> owner

-- | Storage map of allowances
allowances :: SMap (ADDR {- Owner -} -> ADDR {- spender -} -> U256)
allowances = makeSMap "Yolc.Demo.ERC20.Storage.Allowances"

-- | ERC20 allowance function.
allowance :: StaticFn (ADDR -> ADDR -> U256)
allowance = $lfn $ ylvm'pv
  \owner spender -> sgetM $ allowances #-> (owner, spender)

Note that you can specify storage location with a string that is hashed by keccak256.

Expressive Type System

Thanks to the deep embedding, Yolc has access to all the Haskell's type level features. Here are a few notable ones.

Polymorphic Types, or "Generics"

You could write a function that works for any integer types. In the following example, the same poly_foo function is instantiated to uint8, int32 and uint256 types.

poly_foo :: forall a s n.
  ( a ~ INTx s n, ValidINTx s n
  ) => PureFn (a -> a -> a)
poly_foo = $fn \x y -> x * 2 + y

-- Test same poly_foo instantiated in different types:
test_poly_foo :: Bool
test_poly_foo = and
  [ evalFn (poly_foo @U8) (4 :* 2 :* Nil)   == 10
  , evalFn (poly_foo @I32) (4 :* 2 :* Nil)  == 10
  , evalFn (poly_foo @U256) (4 :* 2 :* Nil) == 10
  ]

Higher Kinded Types

This allows you to define type that takes a parameter of another type. The following example shows a "Maybe" type, or sometimes called optional value in some other languages.

-- Add @b@ to a using @a@ functor, since @a@ is a Maybe type.
maybe_functor_fn2 :: PureFn (Maybe U8 -> U8 -> Maybe U8)
maybe_functor_fn2 = $fn \a b -> (+ b) <$$> a

And if you knew some Haskell already, you may have guessed that <$$> is the operator version of fmap in Yolc.

Algebraic Data Type

With Yolc, you can define more than just "struct" in Solidity. A struct is called a "product" type in Algebraic Data Type (ADT). You should feel free to ignore such a pedantic naming. However, what makes ADT more powerful the dual of the "product" type, "sum" type.

data BuyOrder
  = MarketOrder Time {- expiring at -}
  | LimitOrder Time {- expiring at -} Price {- limit price -}

Now you can represent a buy order with two different cases: A market order, or a limit order.

To work with it, you can use Yolc's pattern-matching feature:

match order \case
  MarketOrder t     -> _ {- ... do something ... -}
  LimitOrder  t prc -> _ {- ... do something differently ... -}

💡 Read here to learn more about how to define and work with ADT in Yolc.

LinearTypes and Data Versioning

Most notably, Yolc uses LinearTypes to provide a constrained environment to program effectful code (storage access, external contract messaging, etc.) with data versioning.

With data versioning, programming bugs such as "re-entrance" errors, or more generally using "outdated" data, are eliminated in compile-times.

Read here to learn more about Data versioning in Yolc.
